Quick Details

  • Screen Size: 6.2", 6.2"
  • Placement: Dashboard
  • Combination: Bluetooth-Enabled, Built-in GPS, CD Player, MP3 / MP4 Players, Radio Tuner, Touch Screen
  • Certification: CE FCC
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Galawin
  • Model Number: JAD2102A
  • Warranty: 12 Months

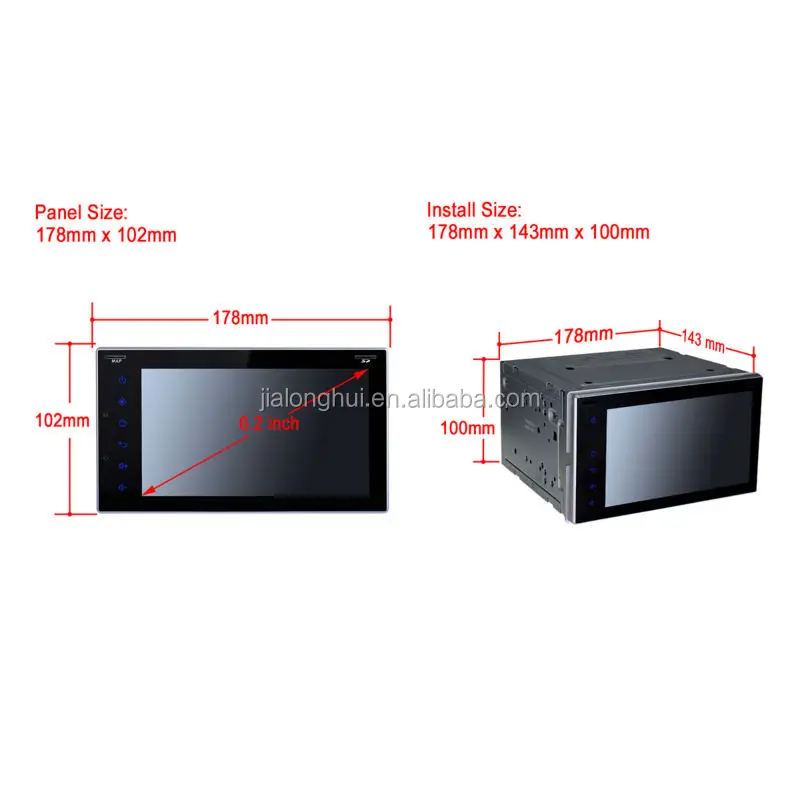

  • Item Size: 178mm*143mm*100mm
  • Version: Android 4.4
  • CPU: RK3066 1.6GHz Cortex A9 Dual-Core
  • Memory: DDR3 1G
  • Function 1: GPS+Radio+BT+AUX in/out+1080P Video Playback+SWC+
  • Function 2: USB/SD+Camera Video Input+Two USB Interfaces+wifi+External MIC
  • Optional: DVD,3G Module,OBD2,IPOD,GPS MAP,DVR,ISDB-T,DVB-T,DVBT2(High),ATSC
  • Car Make: Interchangeable

Packaging & Delivery

Packaging Details: Export Carton
5KG/unit
34*32*22CM/Gift Box
Delivery Detail: 1-2 working days ( standard function)

DOUBLE DIN PURE ANDROID 4.4 OS DUAL CORE A9 Car GPS Navi, Car Stereo Radio, GPS+Radio+BT+AUX in/out+1080P Video Playback+ Steering Wheel Control+USB/SD+Camera Video Input+Two USB Interfaces+Built-in wifi+External MIC



This product link consists of the following functions:

GPS+Radio+BT+AUX in/out+1080P Video Playback+Steering Wheel Control+USB/SD+Camera Video Input+Two USB Interfaces+Built-in WIFI+More Lauguage



Product Description



Basic Function:

l           GPS:Support series of GPS software and network map.

l           DVD:Support OSD Touch Function(DVD/DIVX/MP4/MP3/MP2/VCD)

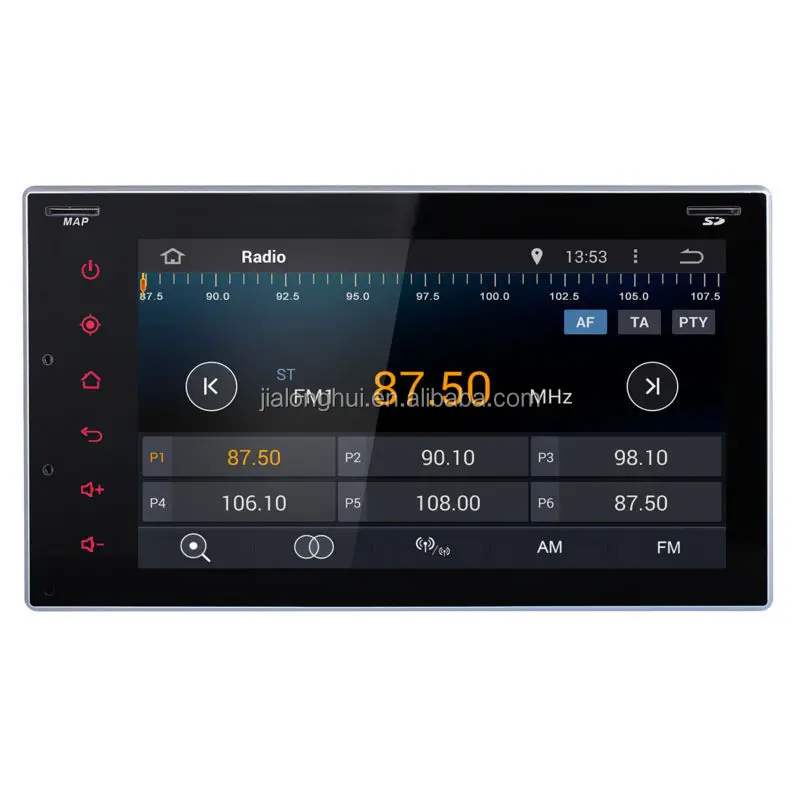

l           AM/FM Radio: RDS function and support saving 30 stations.

l           TV Function:Support DVB-T/ISDB/ATSC/Analog TV(option)

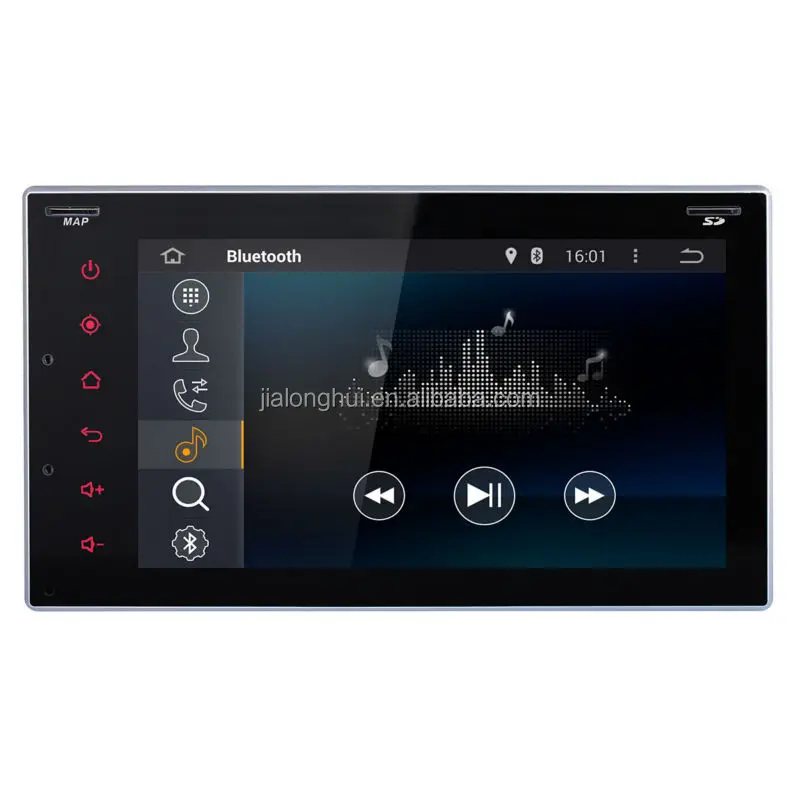

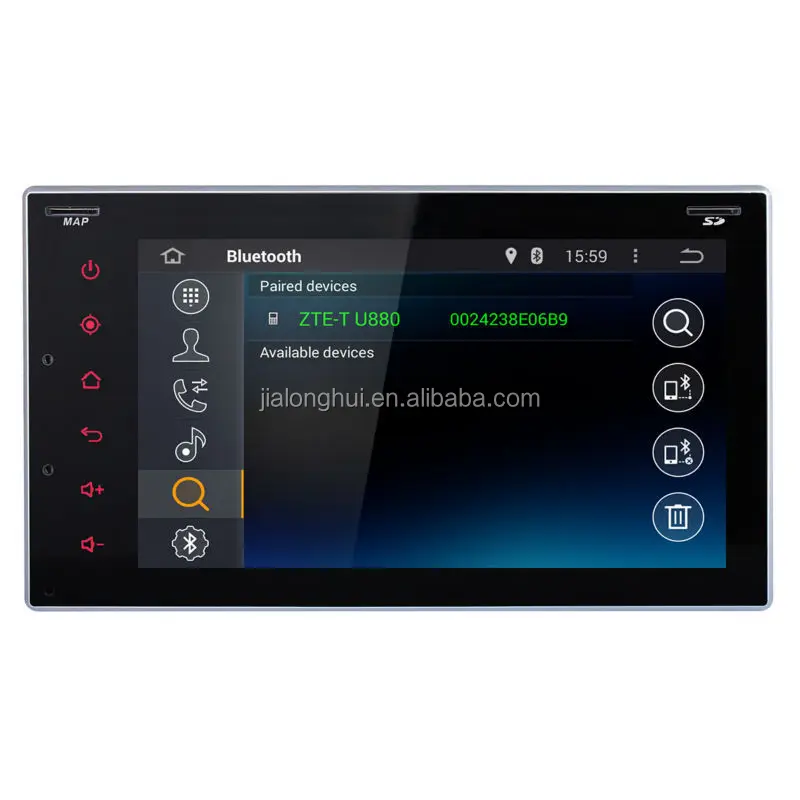

l           Bluetooth Handsfree:Support Chinese/English phonebook, call log, music play, and Bluetooth data transfer.

l           IPOD Interface:Support audio playing.(option)

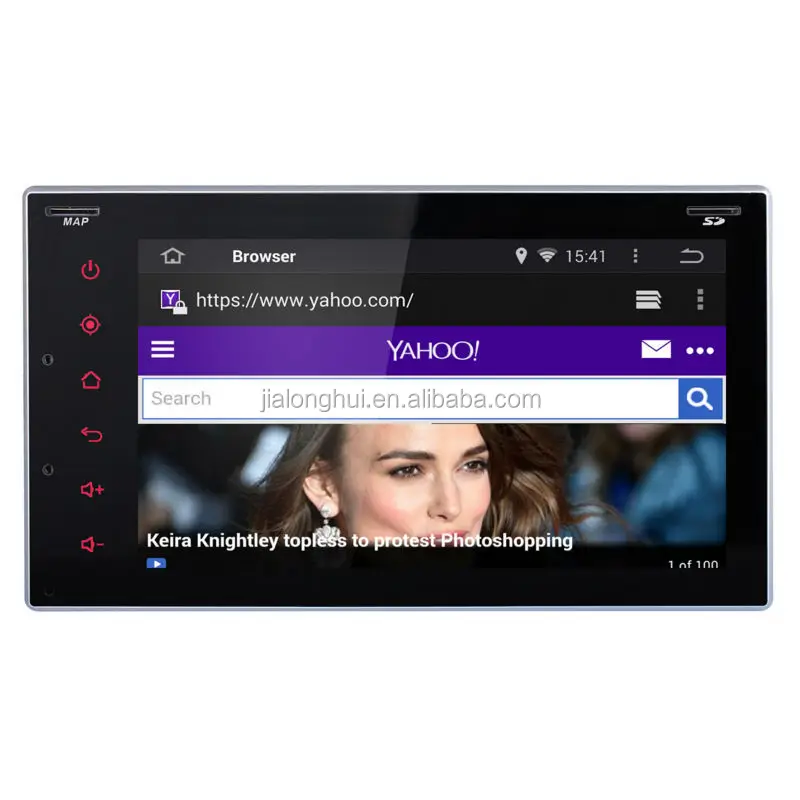

l           WIFI: Wireless internet access and hotspot sharing function.

l           Movie Format:Support all Android videos, streaming media playing and 1080P video decoder, such as MPEG-1/2/4,H264,RMVB,DivX, etc

l           Music Format:Support MP3,WMA,WAV,AC3,OGG,FLAC, etc, and network audio playing.

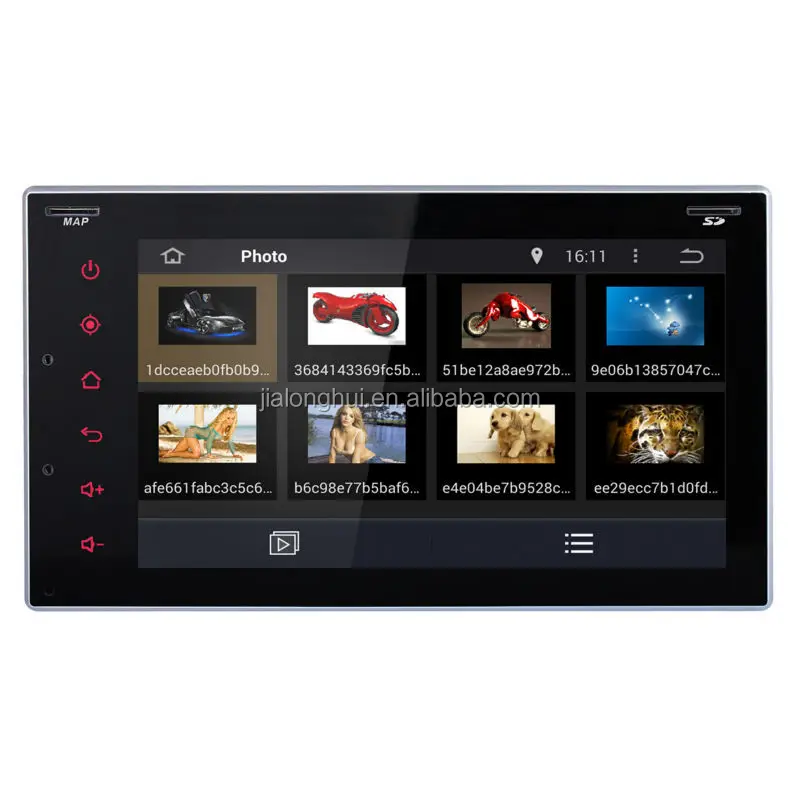

l           Picture Format: Support JPEG, BMP, PNG, TIFF, etc.

l           Document Format: PDF, Word, Excel; support all Android application software.

l         Support external 3G Module to surf the internet.(option)

l         Support Canbus function,Canbus box (option)

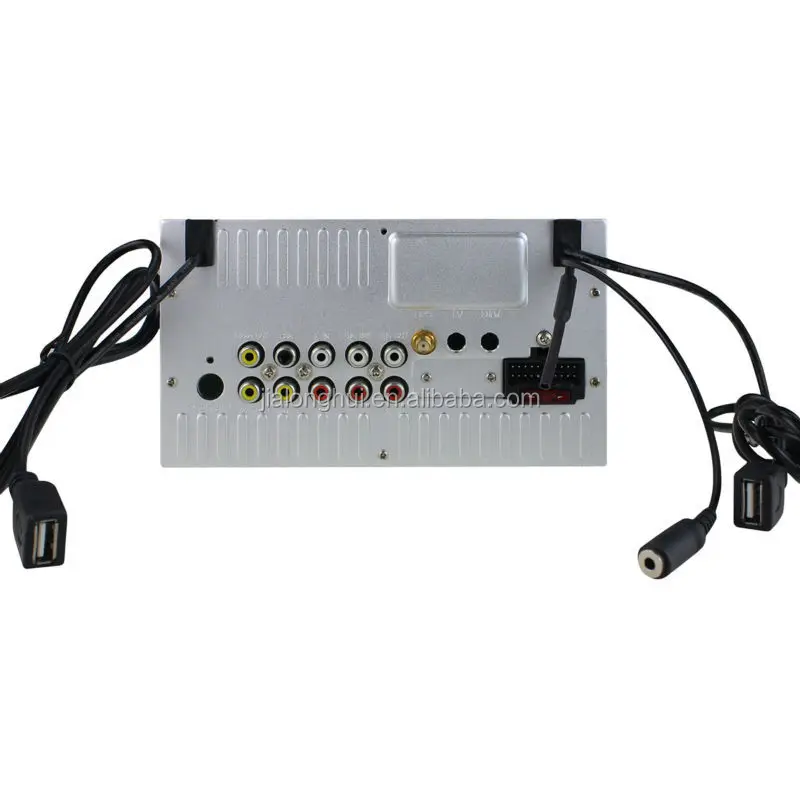

l           1 x AUX AV-out, 2 x AUX AV-in, 1 x Subwoofer audio-out, 1 x Rear Camera

l         Support the rearview camera function,camera (optional)

l           Support two SD ports and two USB interfaces. Under 32G SD card and under 500G USB flash disk are available.

l           Support RGB backlight; multiple colors are available.

l           OSD Language: Support multiple languages (Chinese, English, Russian, Japanese, Portuguese, etc.)

l           Automatic backlight dimming in the night makes night driving more convenient and helps to reduce visual fatigue.

l           Navigation, watching movies and enjoying music can achieve synchronization.

l           To freely install applications which can work in the Android 4.4 OS .

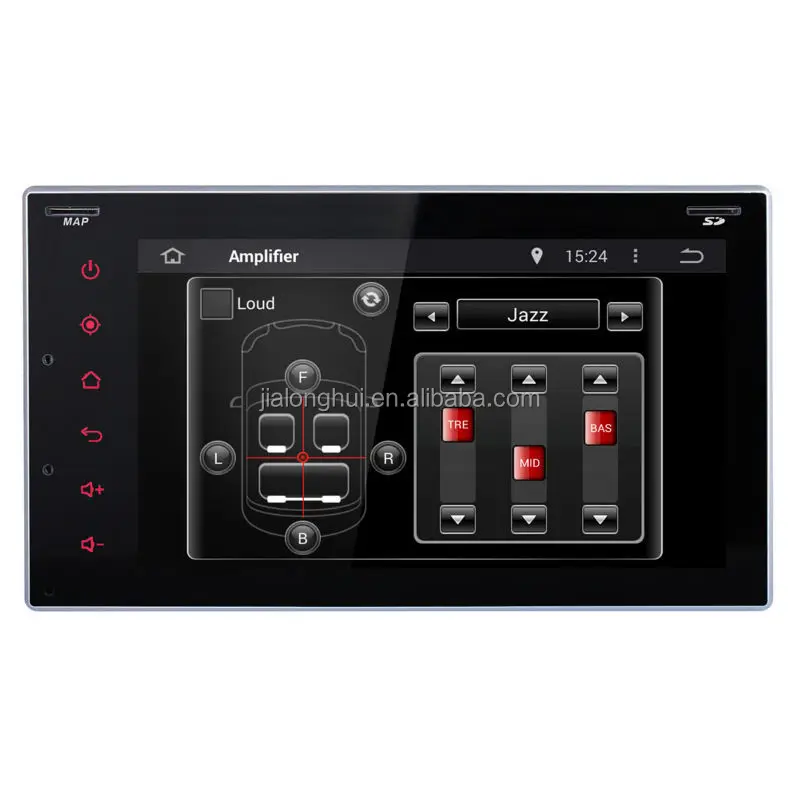

l           EQ: Treble/mid/bass. Jazz, Pop, Classic, and various sound modes are available.

Special Function:

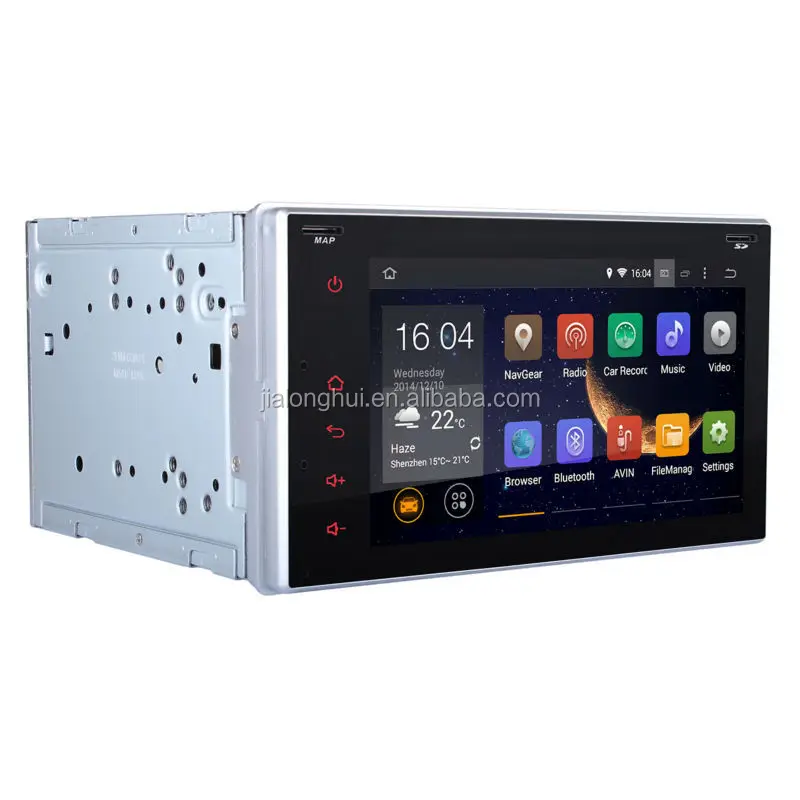

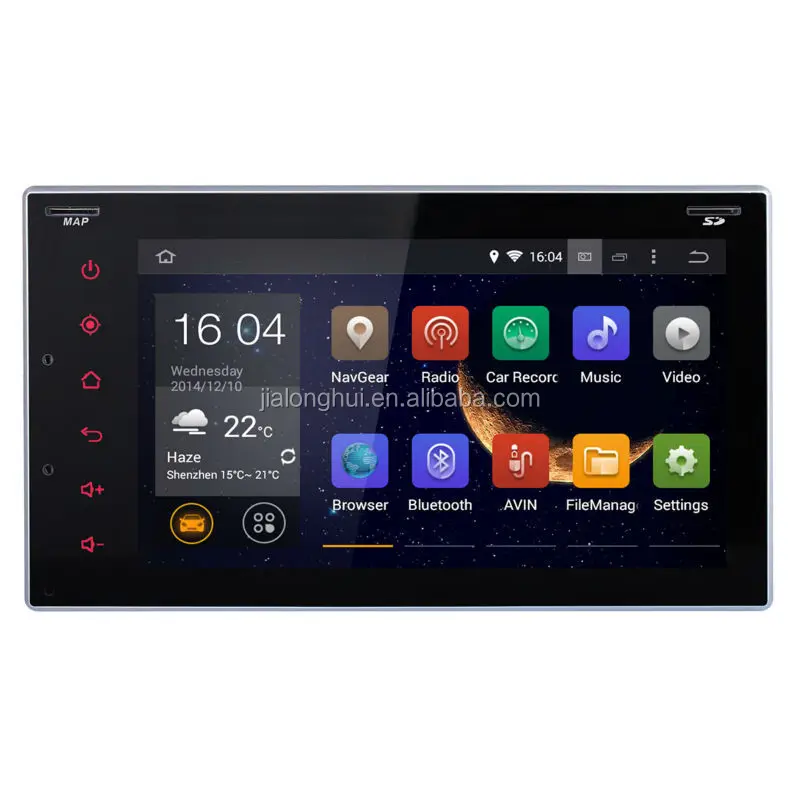

u       Cool and characteristic UI interface; support Android animated wallpaper.

u       Full touch screen; support all Android applications.

u       Humanized  music  playlist  makes operation more flexible;  support MP3, WMA, WAV, AC3, OGG, FLAC, etc.  And  some  audio  coding,  like MP1/2/3,OGG,APE,RM,SIPR,ATRC,WMA,AC3,FLAC,AAC also can be compatible.

u       High-definition video decoder function, supports multiple video format, like DAT, MPG, MPEG, VOB, MP4, MOV, AVI, DVD Video,  ASF,  WMV,  MKV,  TS,  RM, RMVB,etc, and various video decoder, like H.264, Xvid, MPEG2, MPEG4, VC-1, WMV9, MPEG1, H.263, Divx. Support full HD resolution (up to 1080P),and HD/standard definition such as 1360×768(768P), 1280×720(720P), 1024×576(576P)and so on also can be compatible.

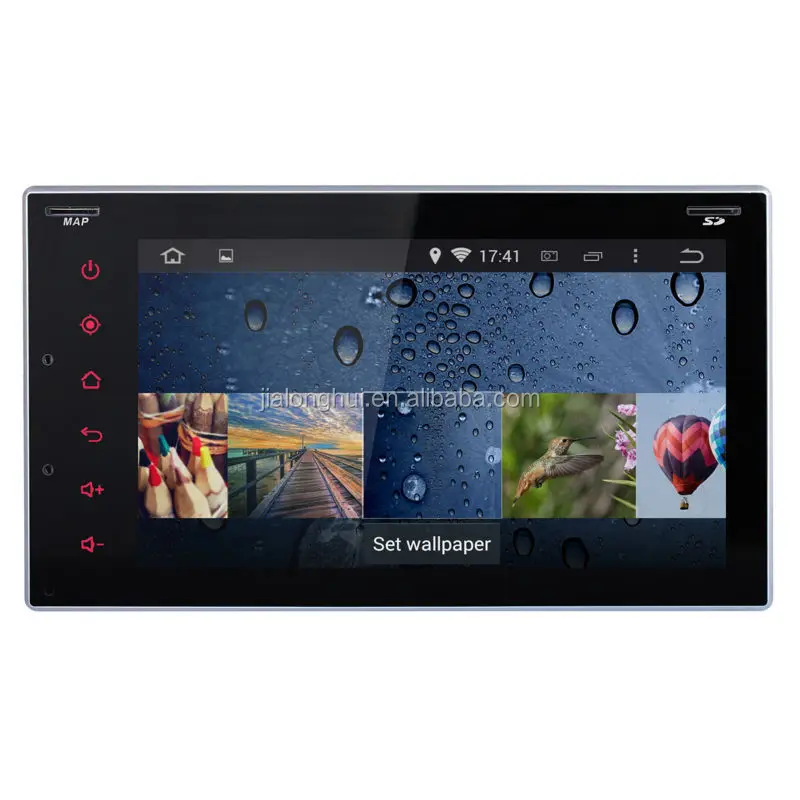

u       Any picture in the file can use to be boot screen or wallpaper. Support JPEG, BMP, PNG, TIFF, etc.

u       Internet function can make GPS map automatically achieve time synchronization.

u       RGB backlight can make multiple colors select.

u       One hundred car logos are available to be boot screen or you can select custom image from SD card.

u       Built-in BT can transmit OBD information. It is also available to external OBD vehicle information system.(option)

u       Support vehicle traveling data recorder function, camera (optional)

u       To achieve audio, video and picture in the phone synchronized playing when interconnecting Iphone4 with hosts WIFI.

u       DVD player can be operated by full-touch mode; support DVD/VCD/CD/MP5/RMVB/MP3/AVI/CD-R/WMA/JPEG, etc. Totally enclosed movement can effectively prevent dust.

u       Built-in WIFI and hotspot sharing function.

u       Support for 3G wireless Internet access , 3G dongle ( optional )

u       High resolution LCD (800*480) makes character much clearer,   You can also optional HD screen 1024*600(option)

u       Support series of GPS software. Online map, IGO Primo, sygic , TomTom, etc are all available

Key Feature:

n         Android 4.4 OS.

n         Full-touch screen; support all Android applications.

n         RAM:DDR3 1GB.  Flash:8GB

n         External OBD vehicle information system and automobile data recorder.(option)

n         Built-in WIFI and hotspot sharing function.

n         Built-in BT 2.0 A2DP; Chinese/English phonebook, call log, music play, Bluetooth data transfer.

n         RGB backlight can make multiple colors select.

n         To achieve audio, video and picture in the phone synchronized playing when interconnecting  Iphone4 later with hosts WIFI.

n         Support PDF, Word, Excel document format.

n         Support two SD ports and two USB interfaces. Under 32G SD card and under 500G USB flash disk are available.





ParameterGPS
CPURK3066 1.6GHz Cortex A9 Dual Core  MAPBuilt-in Head Unit or Memory Card
RAM MemoryDDR3 1GBSupported ProgramGOOGLE,SYGIC,IGO……
NAND FLASH8GB                                  GPS Navl StorageSupport SD/SDHC(1G-32G)
DVD LoadDL-30FunctionMusic /Radio/Blueeoth/DVD/IPOD/IPHONE
Can/Working Same Time While GPS Working
DVD Load MotorMabuchi MotorChipU-BLXO G6010
DVD BladHitachi 1200XHDisplay
Power AMP IC IDA7388Touch ScreenHigh Hardness,Scrape Prevent,5 Point Touch
BluetoothBC06Resolution1024×600 or 800*480
Radio ChipNXP6624WallpaperLived Wallpater (Suppotr Customer)
Decoding IC8202VGQIcon DragSupported
System ParameterSoftware applications
Video DedodingAll FormatFile MoveSupport Different Storage File Copy and Movement
Operate SystemAndroid 4.4File DeletSupported
Start-up TimeBasic is about 5 S,Most is about 25SAndroid App InstallSupported
Working Tempertarure -20°C-----+70°CMalnly FunctlonSupport Android App Install,Delet
Storage Temperature -30°C-----+80°CDesktop AppSupport On-line Weather Forcast and Lived Wallpaper
Standby Current<10MAInput Method google,Sugou…
Working Voltage10.8~14.8VIMMSN,SKYPE,QQ,Facebook
 3D GamesSupport Angry Bird,Cut Apple…
Audio/VideoNet Work
Vldeo FormatMPEG-1/2/4,H264,H263,VC1,RV,RMVB,DivX,VP8,AVS Stream…Al Foramt3GSupport 3G Network and Share Moblle WIFI hotspot
Audio FormatMP3,WMA,AAC,RM,LFAC…All FormatWIFIBuilt-in WIFI module
Video InputOne Channe AUX Video Input
One Channe Rear Camera Vidio Input

Video Output Two Channe AUX Video PutputDVRBuilt-in DVR System,Connect USB Camera Can
Take Video Directly
Audio Input One Channe AUX Audio InputParking Rear
Video
Quick Switch Interface about 25 time
Audio OutputTwo Channel AUX Audio Output
One Channel Bass Audio Output
Steerling Wheel
Control
21 button For User Do Study
EQTreble/Middle/Bass Theree Channel OutputTPMSBluetooth Receive the Air Pressure and
Temperature Testing Every Time
Power Output4*45WOBD2Bluetooth Reveive Parking Information,like
motor change speed,Oil consumption
Signal-Noise Ratio>90dB
System Language
OSD LanguageChinese,English,Russian,Spanish,Sveska,Turkish,Slovencina,France,Dutch,Ceaky,Italy,Portuguese…
GPS LanguageGPS Language is Depened on the GPS Map Software Program

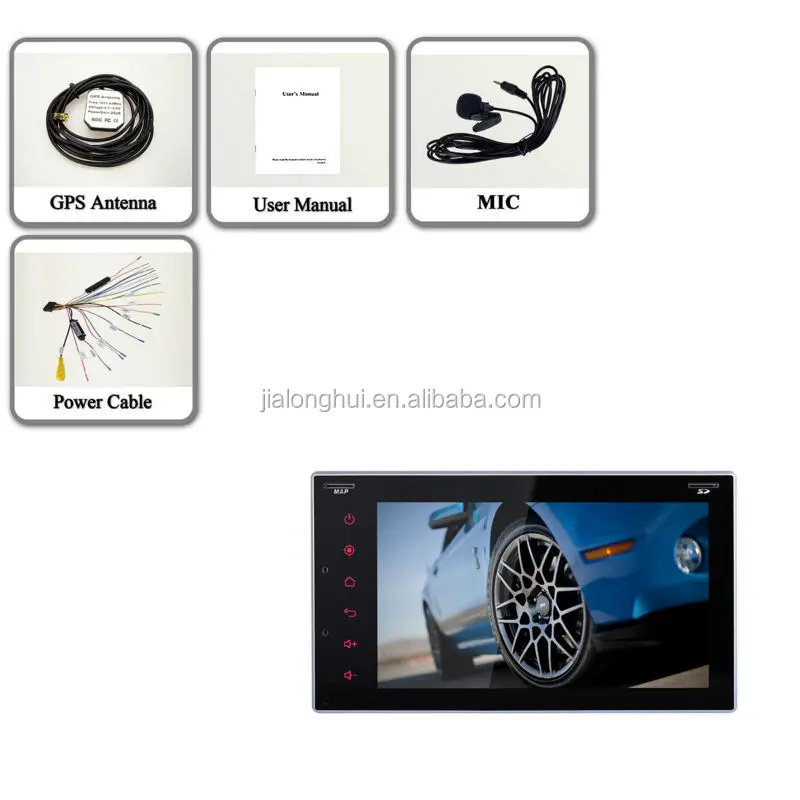

What\'s in the box:

  • Power cable*1
  • Radio cable*1
  • Remote Control*1
  • Gps Antenna*1
  • User Manual*1
